KLD-6

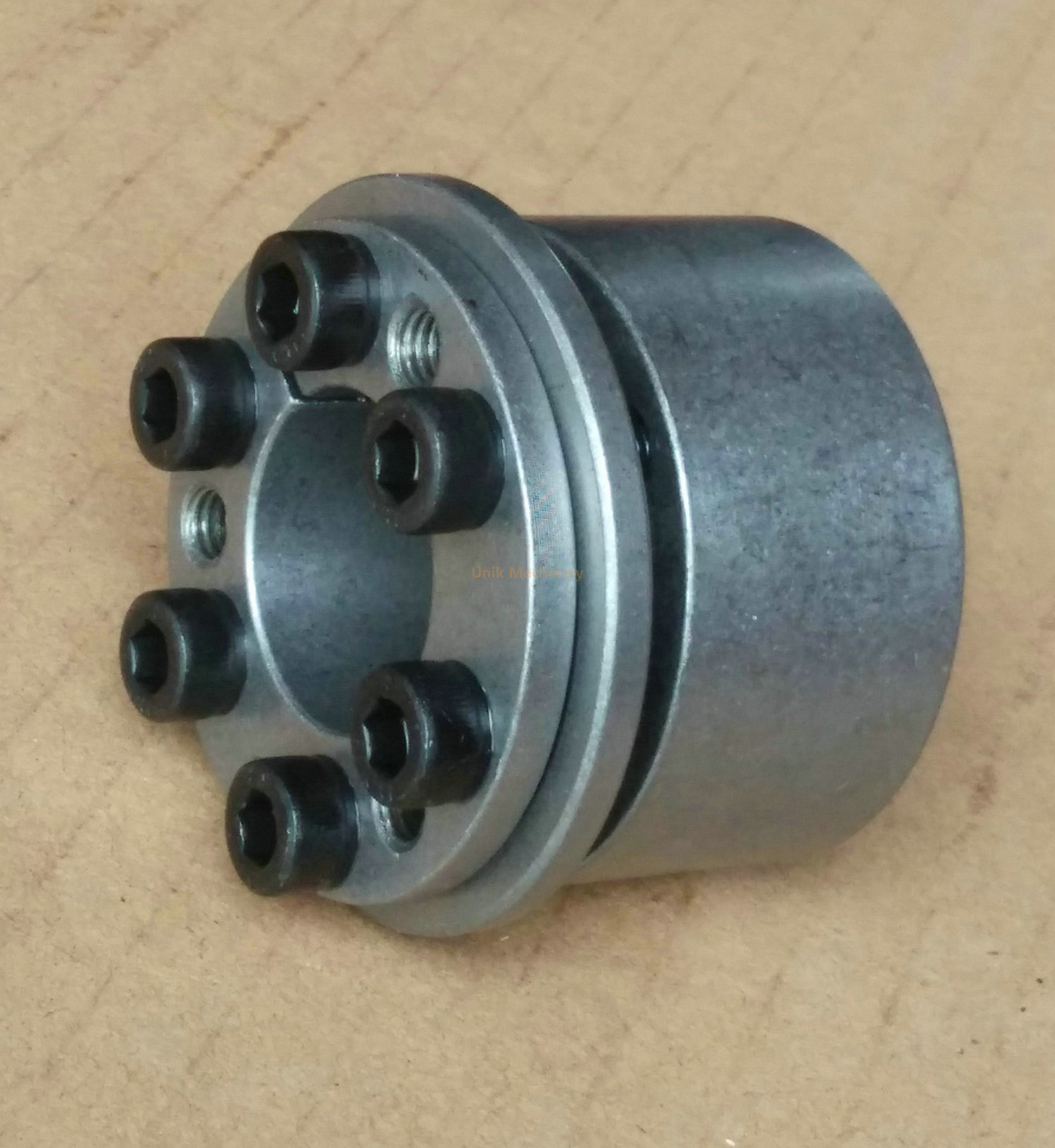

This type Keyless Locking Coupling is self-centering for larger torques with small, self-locking taper angles. The special designed stop ring prevents axial displacement between the shaft and hub, thus ensuring exact positioning in the axial direction. KLD-6 interchange with TLK131 BIKON7000B BK71 CCE4500 RCK71 KLDB MCL5000B KTR201 KBS71 MAV6092 CAL-E RLK131

Availability:

Quantity:



Inquire Add to Basket

Model:
KLD-6
Brand:
Unik

Product Description

Features:

Medium torque
self-centering
Low surface pressure
No axial hub movement
machining tolerance shaft H8, hub H8
socket head Locking screw DIN912-12.9
Surface finish of shaft and hub bore Ra < 1.0 μm
