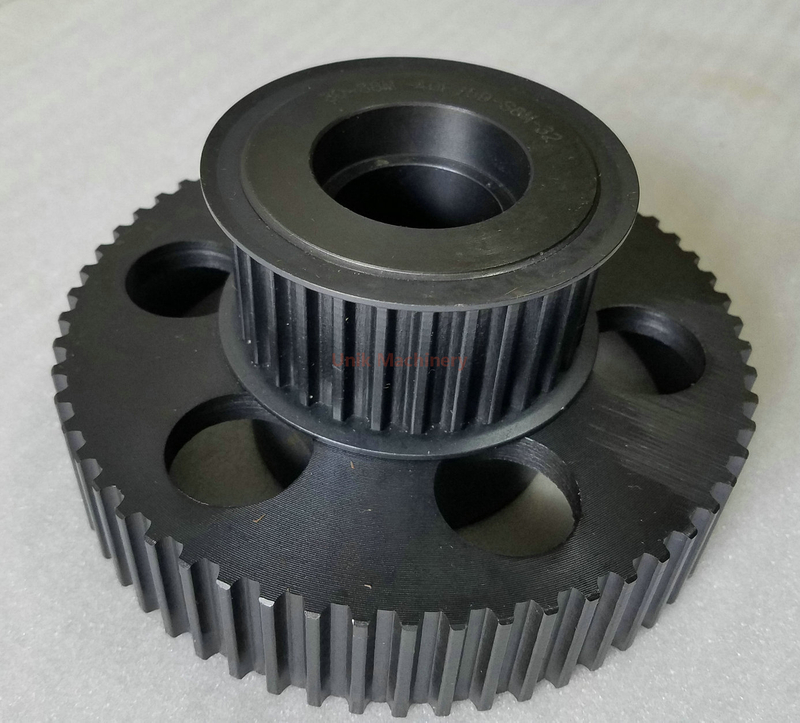

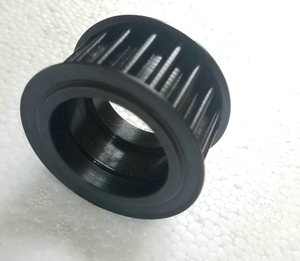

Metric Pitch Timing Pulley AT10

Metric Pitch Timing Pulley AT10mm teeth number from 18 to 60
AT10-31 for belt width 16mm; AT10-40 for belt width 25mm;
AT10-47 for belt width 32mm; AT10-66 for belt width 50mm
Material: Aluminum Surface treatment options: Natural or Anodizing

Availability:

Quantity:



Inquire Add to Basket

Model:
Metric Pitch AT10
Brand:
Unik

Product Description

	Belt Section	Pitch	Outer Diameter	Belt Width	Tooth Depth
Trapezoidal teeth shape pulley as per DIN 7721. Pitch geometry can be as follows, with as low as zero backlash and high power transmission.	T2.5 Timing Pulley	2.300 mm	0.51 mm	4,6,10 mm	0.75 # 1.00 mm
	T5 Timing Pulley	6.000 mm	0.85 mm	6,10,16,25 mm	1.25 # 1.95 mm
	T10 Timing Pulley	10.000 mm	1.90 mm	16,25,32,50 mm	2.60 # 3.40 mm
	T20 Timing Pulley	20.000 mm	2.90 mm - 3.2 mm	16,25,32,50,75,100 mm	5.20 # 6.30 mm
	AT3 Timing Pulley	3.000 mm	0.42 mm	6,10,16,25,32 mm	N.A.
	AT5 Timing Pulley	5.000 mm	1.20 mm	10,12,25,32.50 mm	N.A.
	AT10 Timing Pulley	10.000 mm	1.85 mm	10,16,25,32,50,75,100 mm	N.A.
	AT20 Timing Pulley	20.000 mm	2.90 mm - 3.2 mm	16,25,32,50,75,100 mm	N.A.
