| Quantity: | |
|---|---|

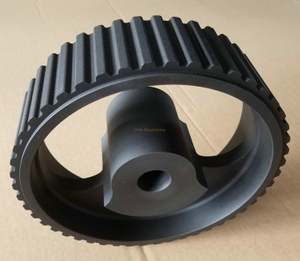

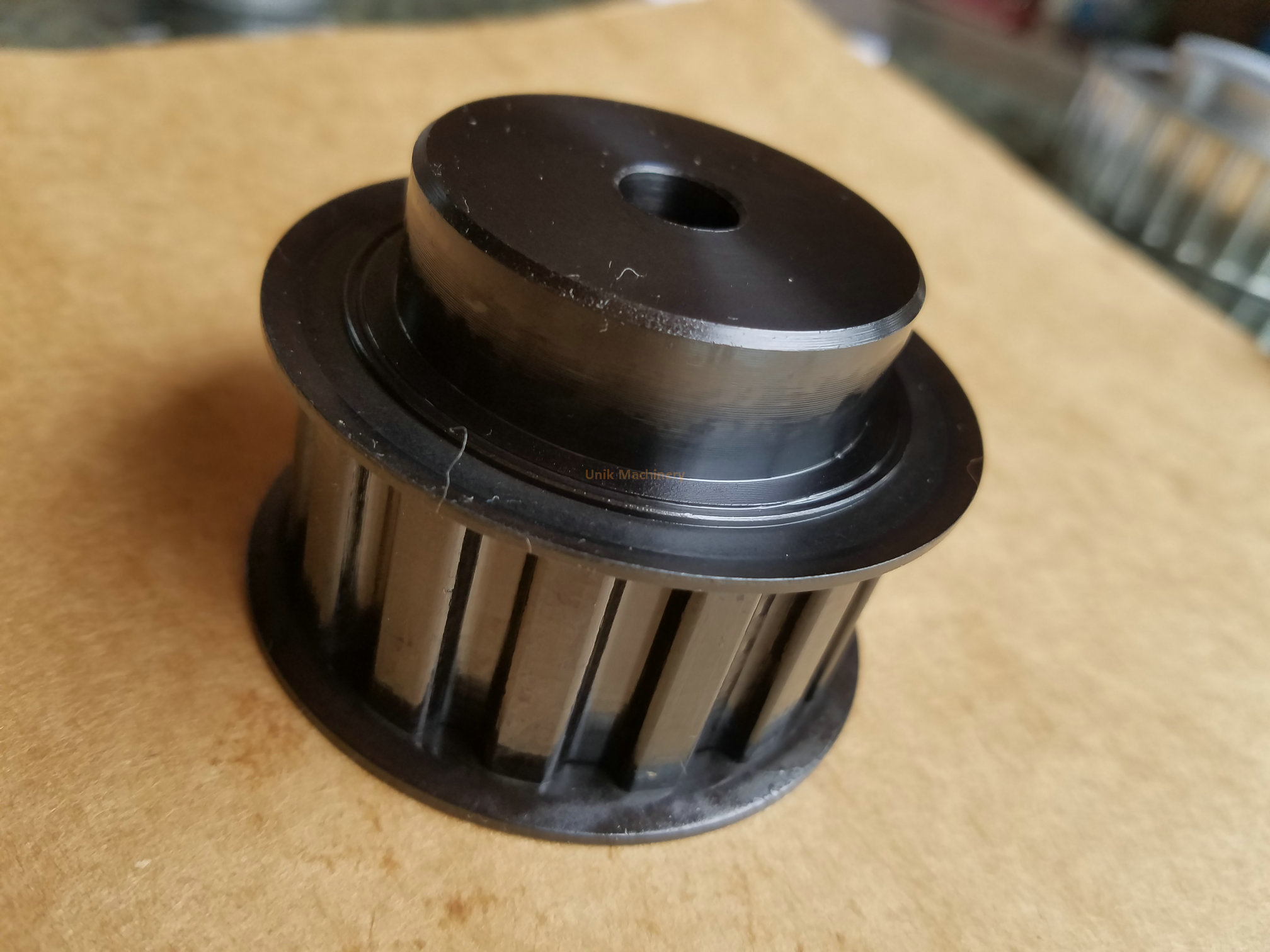

14H075; 156H300
Unik
| Belt Section | Pitch | Outer Diameter | Belt Width | Tooth Depth | |
| In each pitch trapezoidal teeth shape pulley as per ISO 5294, pitch geometry can be as follows | MXL Timing Pulley | 0.080"-2.032 mm | 0.51 mm | 3,6,9,5 mm | 0.457 mm |
| XL Timing Pulley | 0.200"-5.080 mm | 0.51 mm | 9,5,12.5 mm | 1.651 mm | |
| L Timing Pulley | 0.375"-9.525 mm | 0.75 mm | 12.5,19,25.4 inch | 2.667 mm | |
| H Timing Pulley | 0.500"-12.7 mm | 1.37 mm | 1,1.5,2 inch | 3.048 mm | |
| XH Timing Pulley | 0.875"-22.225mm | 2.79 mm | 2,3,4 inch | 7.137 mm | |
| XXH Timing Pulley | 1.250"-31.750mm | 3.05 mm | 2,3,4,5 inch | 10.312 mm |
| Belt Section | Pitch | Outer Diameter | Belt Width | Tooth Depth | |
| In each pitch trapezoidal teeth shape pulley as per ISO 5294, pitch geometry can be as follows | MXL Timing Pulley | 0.080"-2.032 mm | 0.51 mm | 3,6,9,5 mm | 0.457 mm |
| XL Timing Pulley | 0.200"-5.080 mm | 0.51 mm | 9,5,12.5 mm | 1.651 mm | |
| L Timing Pulley | 0.375"-9.525 mm | 0.75 mm | 12.5,19,25.4 inch | 2.667 mm | |
| H Timing Pulley | 0.500"-12.7 mm | 1.37 mm | 1,1.5,2 inch | 3.048 mm | |
| XH Timing Pulley | 0.875"-22.225mm | 2.79 mm | 2,3,4 inch | 7.137 mm | |
| XXH Timing Pulley | 1.250"-31.750mm | 3.05 mm | 2,3,4,5 inch | 10.312 mm |
