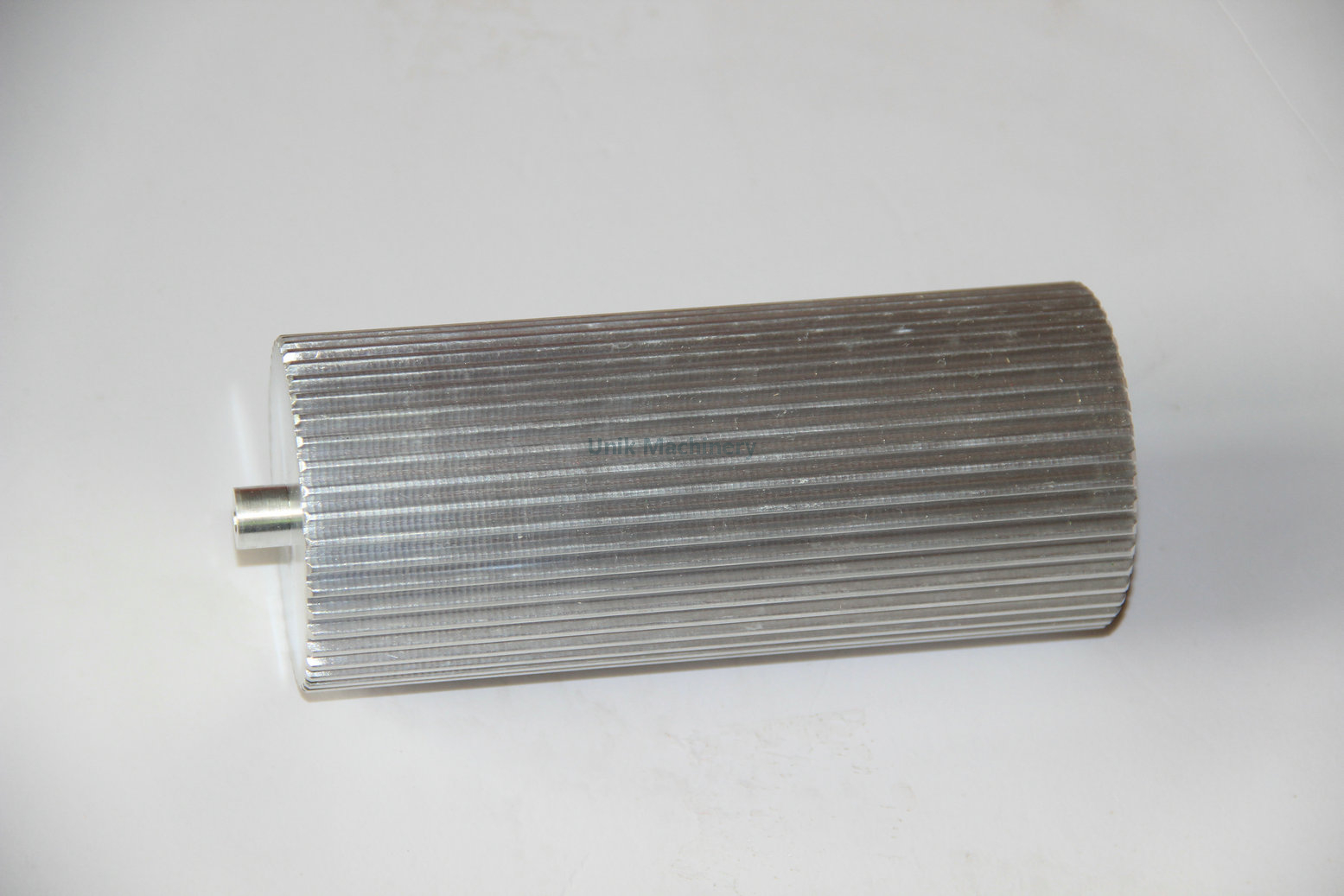

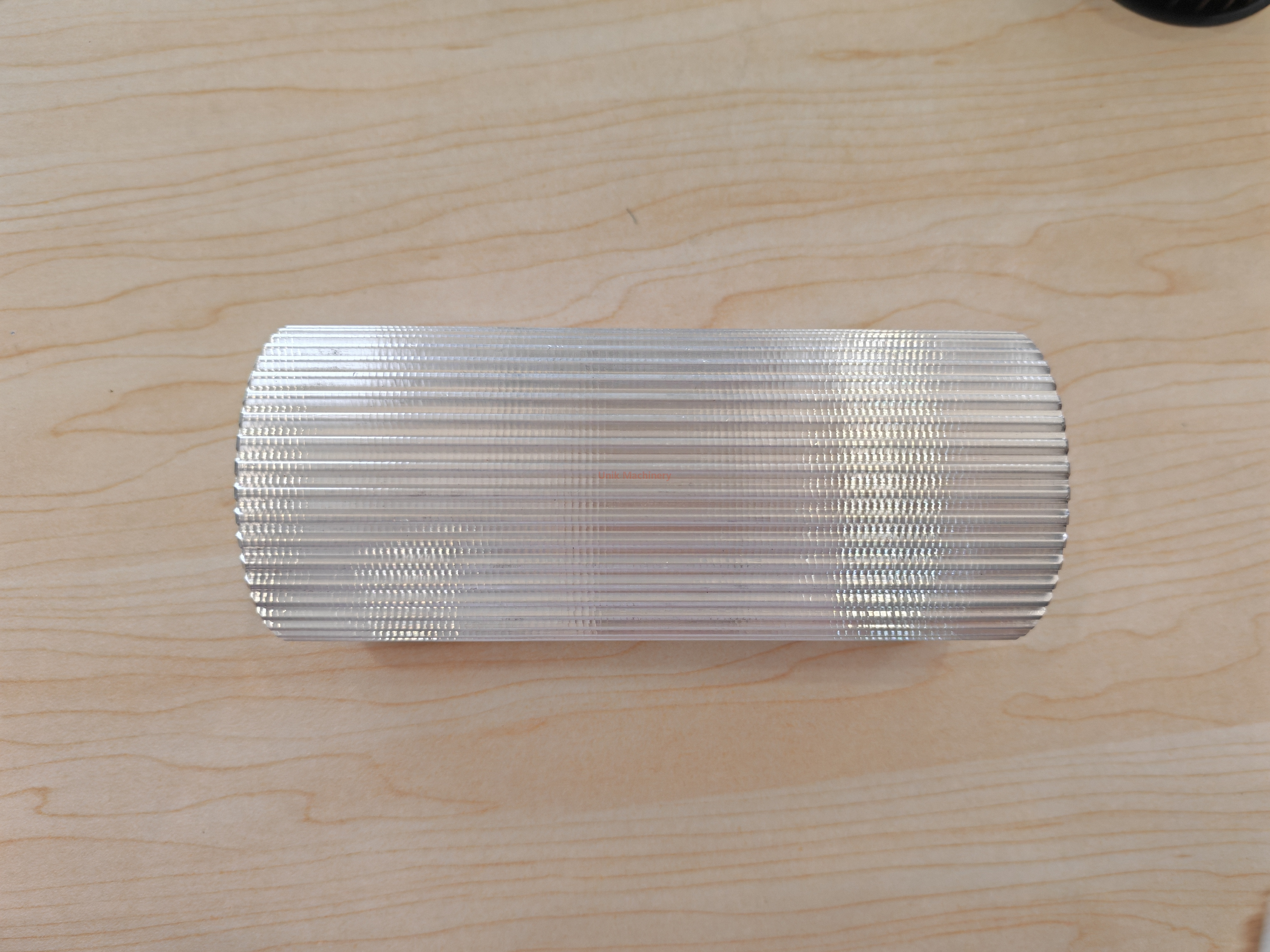

Timing Pulley Bar Stock
Unik
| Belt Section | Pitch | Outer Diameter | Belt Width | Tooth Depth | |
| Trapezoidal teeth shape pulley as per DIN 7721. Pitch geometry can be as follows, with as low as zero backlash and high power transmission. | T2.5 Timing Pulley | 2.300 mm | 0.51 mm | 4,6,10 mm | 0.75 # 1.00 mm |
| T5 Timing Pulley | 6.000 mm | 0.85 mm | 6,10,16,25 mm | 1.25 # 1.95 mm | |
| T10 Timing Pulley | 10.000 mm | 1.90 mm | 16,25,32,50 mm | 2.60 # 3.40 mm | |
| T20 Timing Pulley | 20.000 mm | 2.90 mm - 3.2 mm | 16,25,32,50,75,100 mm | 5.20 # 6.30 mm | |
| AT3 Timing Pulley | 3.000 mm | 0.42 mm | 6,10,16,25,32 mm | N.A. | |
| AT5 Timing Pulley | 5.000 mm | 1.20 mm | 10,12,25,32.50 mm | N.A. | |
| AT10 Timing Pulley | 10.000 mm | 1.85 mm | 10,16,25,32,50,75,100 mm | N.A. | |
| AT20 Timing Pulley | 20.000 mm | 2.90 mm - 3.2 mm | 16,25,32,50,75,100 mm | N.A. |
